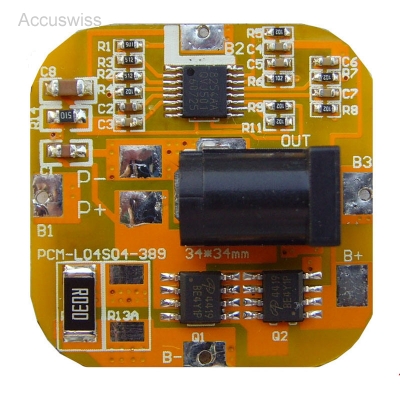

BMS 4S 14.4V Li-ion/Li-Polymer, 34 x 34x 10mm
Battery-Management-System
[BMS] für 4 zellige Akkupacks [4S] - Lithium
Technische Daten:
- Charging voltage: DC 16.8V CC/CV
- Current
- Current consumption: =50µA
- Maximal continuous charging current: 4A
- Maximal continuous Discharging current: 4A
- Over charge Protection
- Over charge detection voltage: 4.35±0.025V
- Over charge detection delay time: 0.5S-1.5S
- Over charge release voltage: 4.15±0.05V
- Over discharge protection
- Over discharge detection voltage: 2.40±0.08V
- Over discharge detection delay time: 50-150mS
- Over discharge release voltage: 3.0±0.10V
- Over current protection
- Over current detection voltage: 150±25mV
- Over current detection current: 15±2A
- Detection delay time: 5ms—15ms
- Release condition: Cut load
- Short Circuit protection
- Detection condition: Exterior short circuit
- Detection delay time: 200-500us
- Release condition: Cut load
