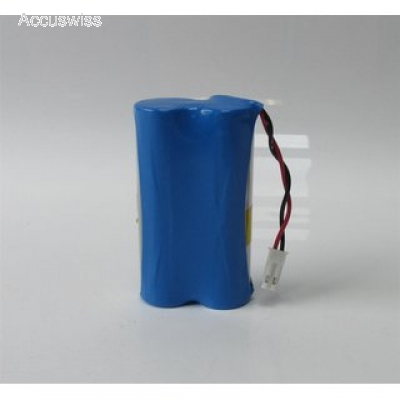

2S1P 18650 7.4V 2600mAh Li-Ion Akku mit BMS
- Für diesen Akkupack werden 18650er Zellen verwendet.
- Ersatzakku wird anschlussfertig konfektioniert - Stecker: JST - SYP-02TV-1 - Stecker 2-polig mit Ableiter ca. 5cm
- Im Akku befindet sich ein 2S / 3A -BMS
Technische Daten:
- Charging voltage DC:8.4V CC/CV
- Balance voltage for single cell N/A
- Balance current for single cell N/A
- Current consumption =20µA
- Maximal continuous charging current 3A
- Maximal continuous Discharging current 3A
- Over charge detection voltage 4.25V ±0.025V
- Over charge detection delay time 0.7S-1.3S
- Over charge release voltage 4.05V ±0.05V
- Over discharge detection voltage 2.40V ±0.08V
- Over discharge detection delay time 89mS-167mS
- Over discharge release voltage 3.0V ±0.1V
- Over current detection voltage 0.2V ±0.015V
- Over current detection current 5±1A
- Detection delay time 8ms-16ms
- Release condition Cut load
- Detection condition Exterior short circuit
- Detection delay time 300-500us
- Release condition Cut load
- Protection circuitry(MOSFET) =70mO
- Operating Temperature Range -40 ~ +85°C
- Storage Temperature Range -40 ~ +125°C
- Masse: 65 x 37 x 19mm
